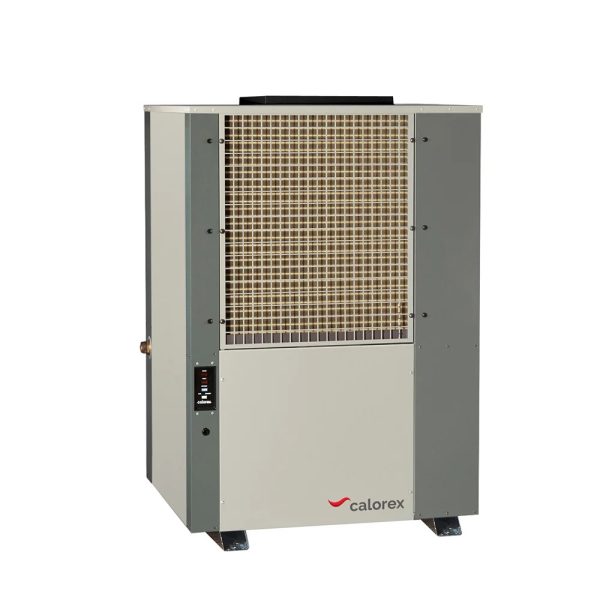

Condenser dryer DH300

he DH300 is a fully automatic high-capacity free-standing dehumidifier. With an internal hygrostat as standard, the powerful high-pressure fan allows this large machine in the range to be used either free-blowing or connected to ductwork.

An ideal solution for storage locations, production areas, data centres and many other applications.

Optionally, the DH300 can be connected to BMS systems, fitted with air filters and alternative discharge options.

Key features

  • Fully automatic
  • Built-in hygrostat
  • Polyester-coated evaporator and condenser
  • Plastisol coated galvanised housing
  • Hot gas defrost system for low temperature operation

Options

  • Top or rear discharge opening
  • Return air filter
  • Condensate pump
  • BMS options
  • External hygrostat

Productspecificaties

Article code

DH300BY

Temperature range

-15 -30°C

Dehumidification capacity @ 30°C/60% RH

300l/24h

Heat recovery @ 30°C/60% RH

14.7 kW

Air output

5.000 m³/h

Air pressure

0-140 Pa

Noise level

66 dB(A)

Refrigerant

R407C

Connection voltage

400/3ph/50Hz

Power consumption

6.7 kW

Full-load amps

19 A

Max. recommended fuse

24 A

Compressor start ampère

101 A

Compressor start ampère (soft start)

34 A

R407 gas filling / CO2 equivalent

R407 gas filling / CO2 equivalent

Dimensions L x W x H

980 x 826 x 1475 mm

Weight

220 kg

Condensate drain size

1½" BSPM inch/ mm
