Condenser dryer DH60

Contactformulier
Offerte aanvragen

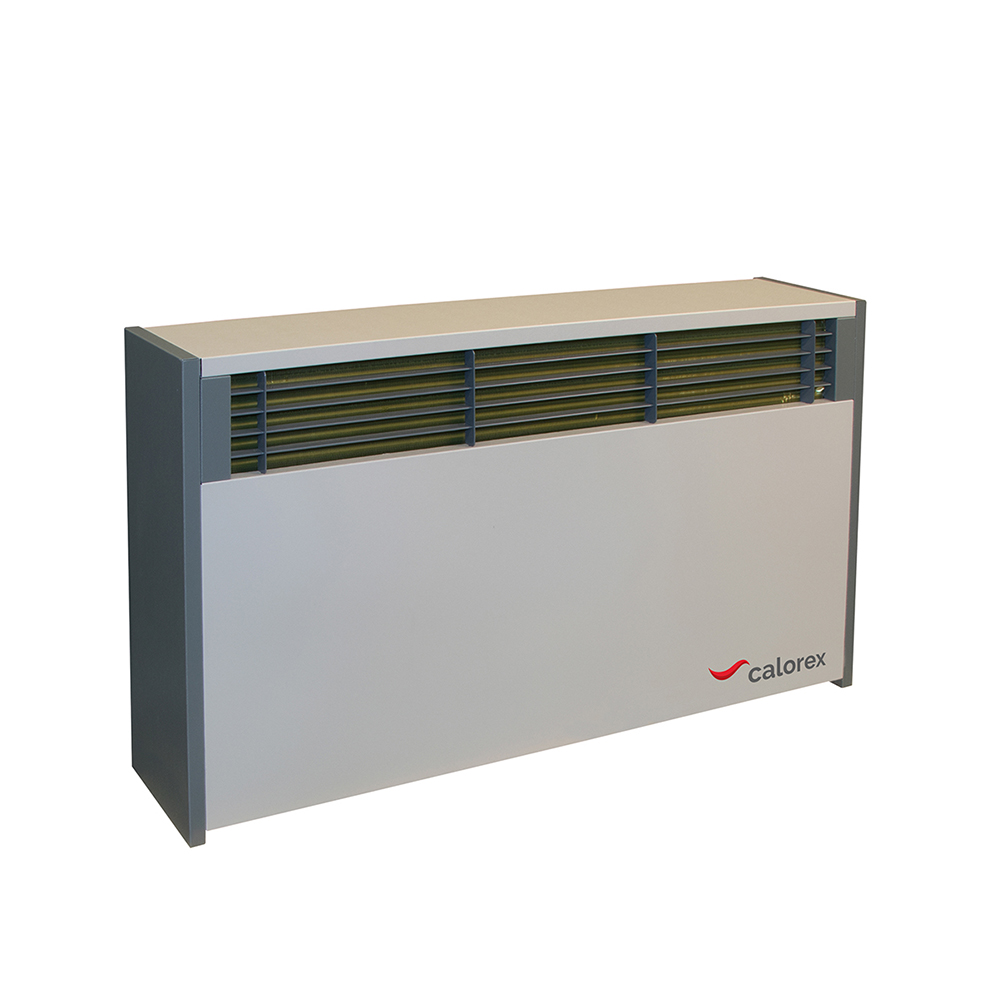

The DH60 is a wall-mounted high-capacity dehumidifier. Ideal for garages, changing rooms and archives, for example. The DH60 provides comfortable humidity here.

It is also the most efficient way for drying clothes, such as in fire stations, diving centres and other ‘wet’ professions. By constantly recirculating the air and removing moisture from it, there is no need to constantly supply warm fresh air.

As an added benefit, the dehumidification process itself also generates ‘free’ heat (up to 3.5 kW for the DH60) which speeds up the process.

Main features:

  • Fully automatic operation
  • Built-in hygrostat
  • Polyester-coated evaporator and condenser
  • Plastisol coated galvanised housing
  • Quiet centrifugal fan
  • Hot gas defrosting device for operation from 5°C

    Option

  • External hygrostat and on/off function

Product specifications

Article code

DH60AX
Temperature range

0-35°C
Dehumidification capacity @ 30°C/60% RH

60l/24h
Heat recovery @ 30°C/60% RH

3.5 kW
Air output

1.280 m³/h
Air pressure

–
Noise level

54 dB(A)
Refrigerant

R407C
Connection voltage

230 V/1ph/50Hz
Opgenomen vermogen

1.2 kW
Power consumption

7.5 A
Max. recommended fuse

13 A
Compressor start ampère

30 A
Compressor start ampère (soft start)

–
R407 gas filling / CO2 equivalent

1247 x 270 x 648 mm
Weight

60 kg
Condensate drain size

16 mm
