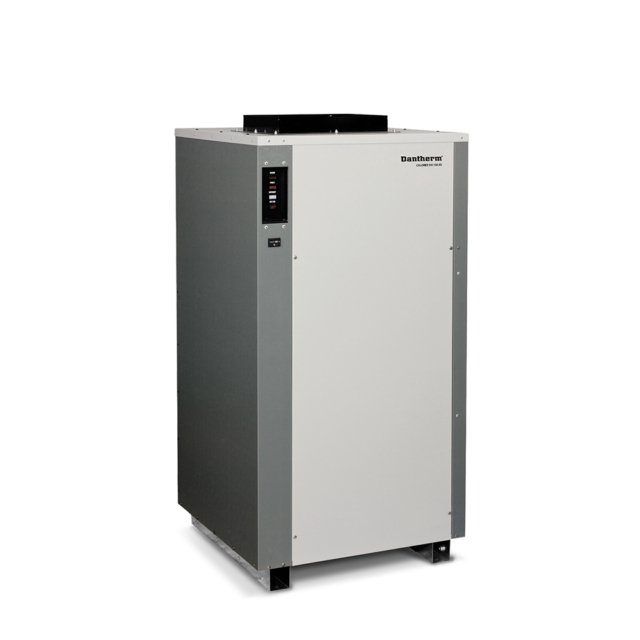

Condenser dryer DH150

The DH150 is a fully automatic high-capacity free-standing dehumidifier. With an internal hygrostat as standard, the powerful high-pressure fan allows this large machine in the range to be used either free-blowing or connected to ductwork.

This is an ideal solution for larger storage locations, production areas but also data centres and many other applications.

Optionally, the DH150 can be connected to BMS systems, fitted with air filters and alternative discharge options.

Key features

  • Fully automatic
  • Built-in hygrostat
  • Polyester-coated evaporator and condenser
  • Plastisol coated galvanised housing
  • Hot gas defrost system for low temperature operation


  • Top or rear discharge opening
  • Return air filter
  • Condensate pump
  • BMS options
  • External hygrostat

Product specifications

Article code


Temperature range


Dehumidification capacity @ 30°C/60% RH


Heat recovery @ 30°C/60% RH

7.4 kW

Air output

2.500 m³/h

Air pressure

0-200 Pa

Noise level

58 dB(A)



Connection voltage

230 V/1ph/50Hz

Power consumption

2.5 kW

Full-load amps


Max. recommended fuse

30 A

Compressor start ampere

61 A

Compressor start ampère (soft start)

28 A

Dimensions L x W x H

660 x 660 x 1313 mm


130 kg

Condensate drain size

¾" BSPM inch
