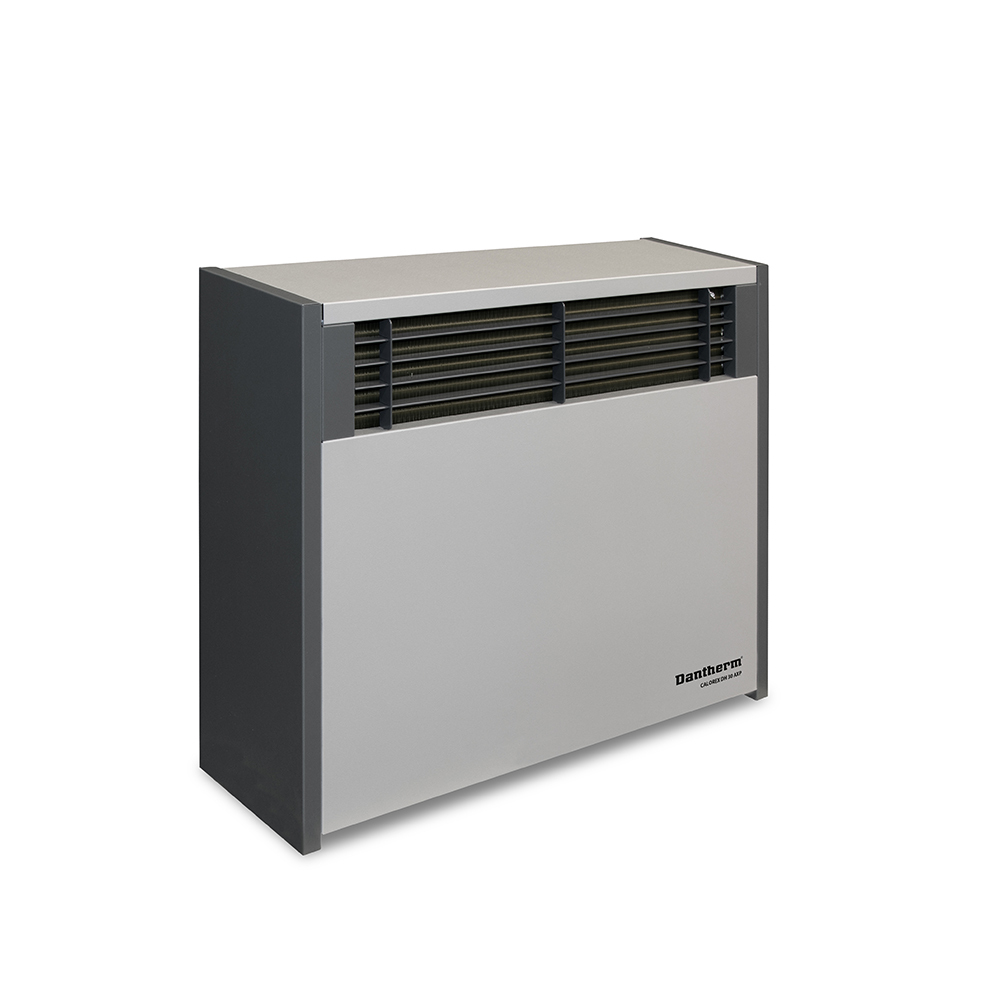

Condenser dryer DH30

Contact form
Request a quote

The DH30 is a compact, wall-mounted high-capacity dehumidifier. Ideal for garages, changing rooms and archives, for example. Here, the DH30 ensures a comfortable indoor climate.

It is also the most efficient way to dry clothes, such as in fire stations, diving centres and other ‘wet’ professions.

By constantly recirculating the air and removing moisture from it, there is no need to constantly supply warm fresh air.

As an added advantage, the dehumidification process itself also generates ‘free’ heat (up to 1.9 kW for the DH30) which speeds up the process.

Key features

  • Fully automatic operation
  • Built-in hygrostat
  • Polyester-coated evaporator and condenser
  • Plastisol coated galvanised housing
  • Quiet centrifugal fan
  • Hot gas defrosting device for operation from 5°C

Product specifications

Article code

DH30AX
Temperature range

0-35°C
Dehumidification capacity @ 30°C/60% RH

30l/24h
Heat recovery @ 30°C/60% RH

1.9 kW
Air output

700 m³/h
Air pressure

–
Noise level

52 dB(A)
Refrigerant

R407C
Connection voltage

230 V/1ph/50Hz
Power consumption

0.75 kW
Vollast ampère

4.4 A
Max. recommended fuse

10 A
Compressor start ampère

15.8 A
Compressor start ampère (soft start)

–
Dimensions L x W x H

782 x 270 x 648 mm
Weight

40 kg
Condensate drain size

16 mm
