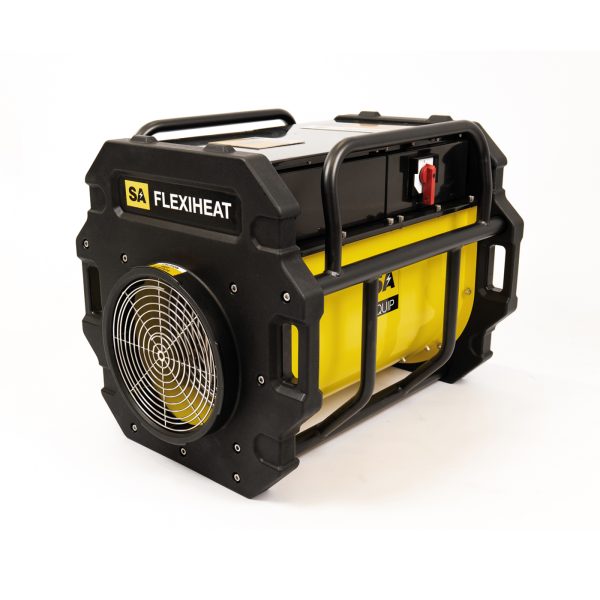

SAPH18EX

The SAPH18EX is a high capacity EX heater suitable for use during harsh conditions of industrial operations. This 18kW heater is suitable for ATEX zone 1 and 2. With the SAPH18EX, it is possible to effectively and safely achieve desired temperatures and can even be used at temperatures down to -40 °C. It is also possible to equip the heater with anti-static hoses so that the warm air can be transported to other rooms.

Product specifications

Article code

SAPH18EX

ATEX code

II 2G Ex d IIB T3 Gb

Heating capacity

18 kW

Air displacement

2130 m³/h @ 50Hz
2560 m³/h @60Hz

Airspeed

15.5m/s – 55.8km/h @ 50Hz
16.3m/s – 58.68km/h @ 60Hz

Connection voltage

400V / 50/60Hz

Power Consumption

15 kW

Recommended fuse

32A

Plug connection

400 V/ 32A – 5-pole CEAG

Air hose connection

300mm (max. 5 meters)

Noise level

83 dB(A) @1mtr.

Dimensions L x W x H

730 x 560 x 580 mm

IP class

IP65

Weight

55 kg (excl. cabel)

Mobility

portable
